SAC550系列通用型多功能变频器

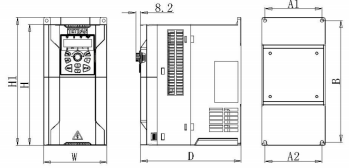

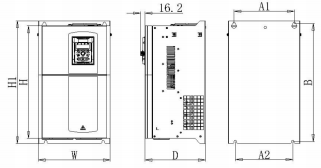

功率
( KW)

H

H1

W

D

A

B

( mm)

SAC550-0 .4L3-B

0 .4

162

172

92

156 .5

81/81

162

Φ4 .5

SAC550-0 .75L3-B

0 .75

SAC550-1 .5L3-B

1 .5

SAC550-2 .2L3-B

2 .2

SAC550-0 .75G/ 1 .5PH3-B-S

0 .75/ 1 .5

SAC550-1 .5G/2 .2PH3-B-S

1 .5/2 .2

SAC550-2 .2G/3 .0PH3-B-S

2 .2/3 .0

SAC550-3 .0G/4 .0PH3-B-S

3 .0/4 .0

SAC550-4 .0G/5 .5PH3-B-S

4 .0/5 .5

SAC550-5 .5G/7 .5PH3-B

5 .5/7 .5

207

219

109

172 .5

98/98

208

Φ5 .5

SAC550-7 .5G/ 11PH3-B

7 .5/ 11

SAC550-11G/ 15PH3-B

11/ 15

250

261

130

182

119/ 119

250

Φ5 .5

SAC550-15G/ 18 .5PH3-B

15/ 18 .5

SAC550-18 .5G/22PH3-B

18 .5/22

280

293

190

199

167/ 177

282

Φ5 .5

SAC550-22G/30PH3-B

22/30

SAC550-30G/37PH3

30/37

390

426

250

210

210/200

410

Φ9

SAC550-37G/45PH3

37/45

SAC550-45G/55PH3

45/55

450

492

300

236

266/266

473

Φ9

SAC550-55G/75PH3

55/75

SAC550-75G/90PH3

75/90

500

555

320

230

230/230

536

Φ10

SAC550-90G/ 110PH3

90/ 110

568

634

410

240

320/320

611

Φ12

SAC550-110G/ 132PH3

110/ 132

SAC550-132G/ 160PH3

132/ 160

616

692

475

347

320/320

669

Φ12

SAC550-160G/200PH3

160/200

SAV550-185G/200PH3

185/200

730

790

420

366

310/310

764

Φ12

SAC550-200G/220PH3

200/220

SAC550-220G/250PH3

220/250

750

810

490

370

360/360

785

Φ12

SAC550-250G/280PH3

250/280

SAC550-280G/315PH3

280/315

1120

1190

650

370

520/520

1159

Φ14

SAC550-315G/355PH3

315/355

SAC550-355G/400PH3

355/400

SAC550-400GH3

400

SAC550-450G/500PH3

450/500

1320

1405

800

430

335/335

1372

Φ14

SAC550-500G/560PH3

500/560

SAC550-560G/630PH3

560/630

1450

1535

950

450

400/400

1502

Φ14

SAC550-630G/710PH3

630/710
